AUTHENTIC DETAILS

True Form Revealed.

Experience the TSM-R1-Y's compact yet powerful design. Engineered for versatility and ease of use.

Highlights

See the Difference.

Innovation that redefines sushi automation standards.

Specifications

Technical Specifications

Engineered for versatility. The TSM-R1-Y brings artisanal quality to high-volume sushi roll production.

Dimensions & Weight

Compact yet powerful. Designed to fit seamlessly into any kitchen layout while delivering maximum output.

SPEC-SHEET REV 1.2

ISO 9001 CERTIFIED

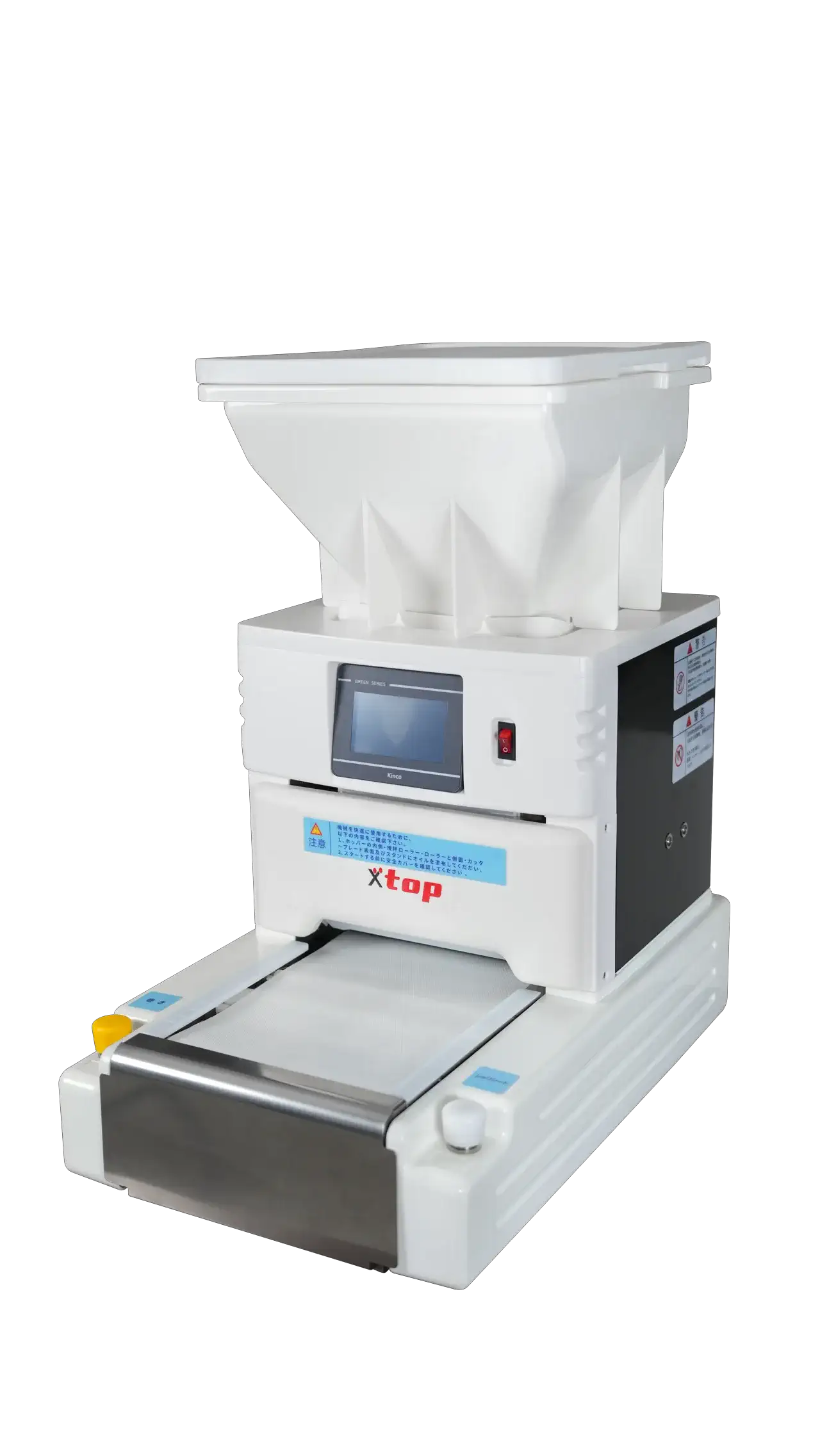

Front Right
Front Right

Physical Specifications

Unit Height
650 mm25.6 in
Unit Width
360 mm14.2 in
Unit Depth
540 mm21.3 in
Net Weight
40.0 kg88.2 lbs
Hopper Capacity
7.5 kg16.5 lbs

Logistics & Installation

Shipping Weight
60.0 kg132.3 lbs
Box Dimensions
730 x 530 x 780 mm~29 x 21 x 31 in
Cable Length
1.5m / 1.8m5ft / 6ft (Region)
Footprint Area
0.31 m²3.34 sq ft
Clearance (Sides)
150 mm6.0 in

Construction & Compliance

Chassis Material
SUS304 Stainless Steel
Food Contact
Fluorine Resin (BPA Free)
IP Rating
IPX3

Performance Metrics

Consistent output at speeds that redefine commercial kitchen efficiency.

Versatile Series

TESTED @ 25°C AMBIENT

Max Throughput

350rolls / hr

DEPENDING ON OPERATOR

Hopper Capacity

7.5kg (cooked)

CONTINUOUS FEED

Consistency

100%

ARTISANAL QUALITY

Sheet Parameters

Roll SpecsAdjustable Diameter
Dual Size
Rice DensityHand-rolled Texture
Medium / Soft
Sheet ThicknessConsistent Weight
Standard
Rice TempWarm Rice Compatible
35°C - 50°C

Operational Data

ProductionSteady Workflow
250-350 Rolls/Hr
CleaningEasy Disassembly
15 Minutes
NoiseWhisper Quiet
< 60 dB
MaintenanceLow Maintenance
6 Months

Controls & Interface

Simple, intuitive touch interface. One-touch operation for seamless production.

Easy Touch

USER FRIENDLY

Digital Interface

Display
Color Touch
Responsive
Operation
One-Touch
Start / Stop
Language
Multi-Lang
Icon Based
Startup
Instant
No warm-up needed

Hardware & Safety

Emergency Stop

Accessible stop button for safety.

Cover Sensors

Auto-stop when covers are removed.

Motor Protection

Thermal overload protection.

Materials & Build Quality

Built to last with high-grade materials. Easy to clean and maintain.

Durable

UL/NSF CERTIFIED

Stainless Steel

Frame Structure

Rust Proof

Non-Stick Resin

Rice Path

BPA Free

Impact ABS

Outer Shell

Tough

Structural Specification

FrameStainless Steel
AssemblyModular
SurfaceSmooth Finish
Life Cycle10+ Years

Food Contact Zones

MaterialFood Grade Resin
CoatingFluorine
Temp RatingHigh Temp Safe
SanitationEasy Wipe

Power & Environment

Standard power requirements for easy installation.

100-240V

50/60HZ

Electrical Input

Input Voltage
100-240V AC
● Auto-Switching
Frequency
50 / 60Hz
Max Power
100W
10W Idle Mode
Fuse Rating
5.0A
250V Slow-Blow
Supported Plug Standards
TYPE B (US)
TYPE F (EU)
TYPE G (UK)

Operating Environment

Ambient Temperature5°C — 35°C
0°C50°C
Relative Humidity30% — 80%
Non-condensing environment required.
Heat Dissipation< 300 BTU/hr

What's In The Box

Ready to run out of the box.

Starter Kit

COMPLETE

Unitx1

TSM-R1-Y

TSM-R1-Y-01

Main unit.

Powerx1

Cable

PWR-CBL

Power cable.

Toolsx1

Cleaning Brush

TL-BRS

Cleaning tool.

Suppliesx1

Oil Spray

SUP-OIL

Lubricant.

Partsx2

Spare Fuse

PRT-FUS

Replacement fuse.

Manualx1

Guide

DOC-GDE

User manual.
