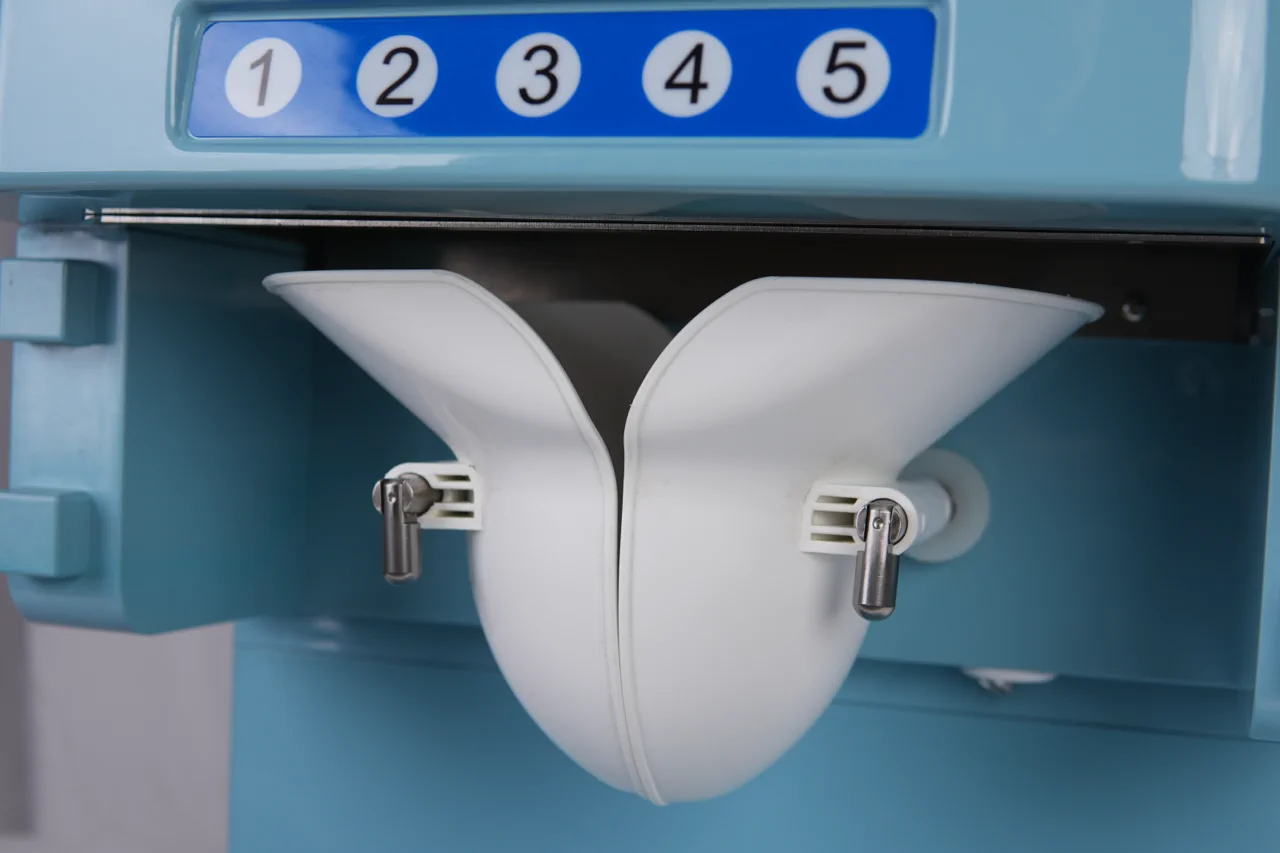

AUTHENTIC DETAILS

True Form Revealed.

From its sleek stainless steel body to the intuitive control panel, see the TSM-M3 in its true element.

Highlights

Get the highlights.

Precision engineering meets compact design. The essential rice divider for any professional kitchen.

Specifications

Technical Specifications

Intelligent rice dispensing for high-volume service. Speed, accuracy, and texture.

Dimensions & Weight

Compact benchtop design with large hopper capacity.

SPEC-SHEET REV 1.9

STANDARD MODEL

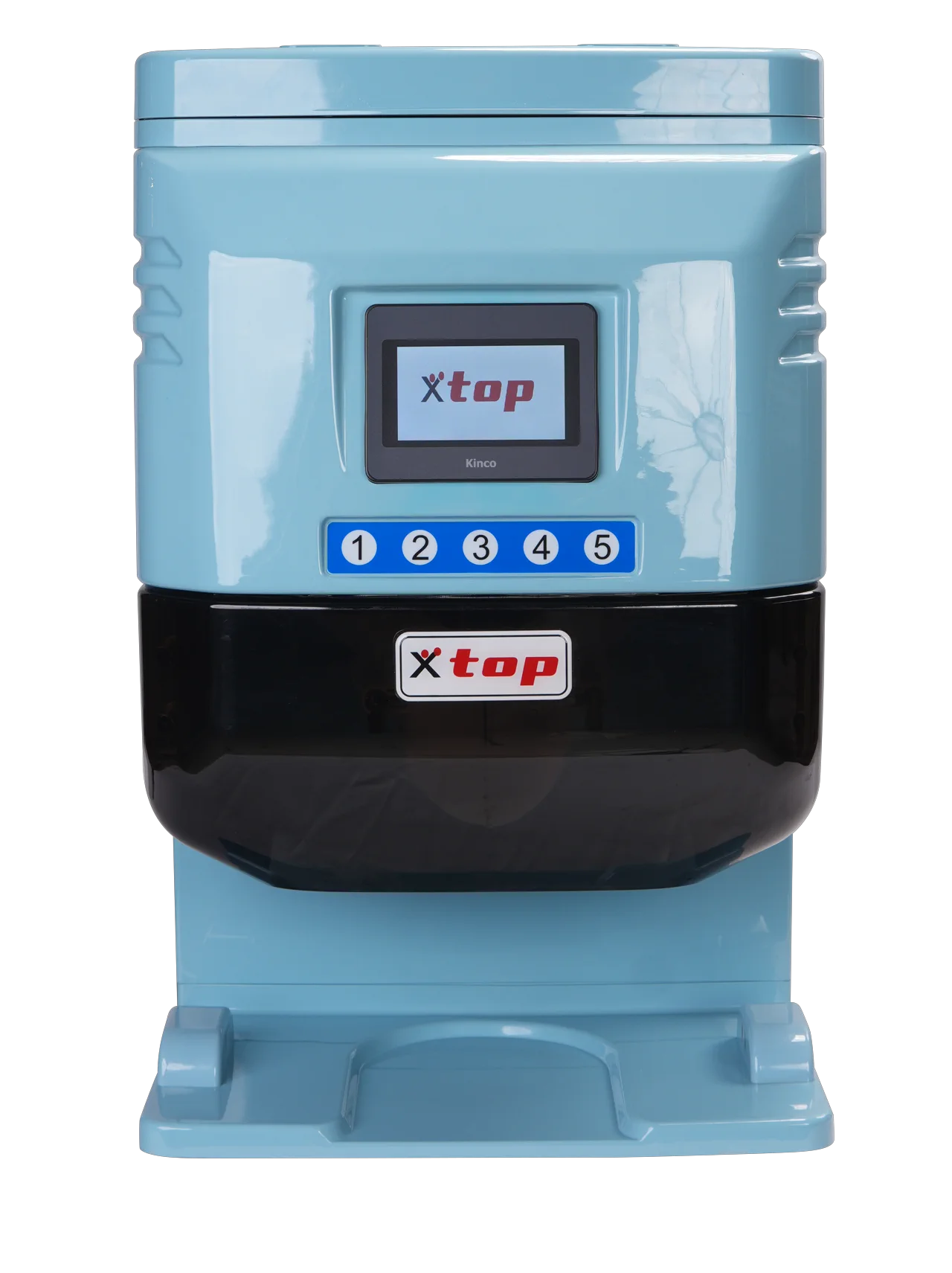

Front View
Front View

Physical Specifications

Unit Height
695 mm27.4 in
Unit Width
450 mm17.7 in
Unit Depth
540 mm21.3 in
Net Weight
48.0 kg106 lbs
Hopper Capacity
10.0 kg22.0 lbs

Logistics & Installation

Shipping Weight
62.0 kg136.7 lbs
Box Dimensions
670 x 520 x 760 mm~26 x 20 x 30 in
Cable Length
1.5m / 1.8m5ft / 6ft (Region)
Footprint Area
0.26 m²2.85 sq ft
Clearance (Top)
400 mm16 in

Construction & Compliance

Chassis Material
SUS304 Stainless Steel
Food Contact
Fluorine Resin (BPA Free)
IP Rating
IPX3

Performance Metrics

Precise portioning from 50g to 400g. Maintains rice fluffiness and temperature.

Smart Dispense

TESTED @ 25°C AMBIENT

Speed

3sec / portion

AVERAGE 200g

Range

50-400g

5 PRESET MODES

Accuracy

±2g

CONSISTENT

Sheet Parameters

Portion RangeFlexible
50g - 400g
Rice TypeShort/Long Grain
All Types
TextureNon-Compressing
Airy
TempInsulated Hopper
Warm

Operational Data

ThroughputContinuous
1200/hr
CleaningEasy Clean
10 Minutes
NoiseQuiet
< 60 dB
MaintenanceCheckup
Biannual

Controls & Interface

Intelligent interface for easy weight selection. Reduces staff training time.

Smart UI

EASY SET

Digital Interface

Display
Digital LED
Clear Numbers
Presets
5 Buttons
Quick Select
Mode
Auto/Manual
Dispense Mode
Adjust
+ / -
Fine Tune

Hardware & Safety

Hopper Sensor

Alerts when rice is low.

Overload

Motor protection.

Emergency Stop

Immediate stop.

Materials & Build Quality

Food grade stainless steel body. Designed for hygiene and longevity.

Hygienic

FOOD SAFE

Stainless Steel

Body

304 Grade

Non-Stick

Internal Parts

Easy Flow

Insulated

Hopper

Thermal

Structural Specification

BodySUS304
DispenserFood Resin
FrameSteel
DesignBenchtop

Food Contact Zones

CoatingFluorine
MaterialFood Safe
CleaningWashable
SafetyBPA Free

Power & Environment

Standard power requirements. Efficient motor design.

100-240V

150W

Electrical Input

Input Voltage
100-240V AC
● Auto-Switching
Frequency
50 / 60Hz
Max Power
150W
10W Idle Mode
Fuse Rating
5.0A
250V Slow-Blow
Supported Plug Standards
TYPE B (US)
TYPE F (EU)
TYPE G (UK)

Operating Environment

Ambient Temperature5°C — 35°C
0°C50°C
Relative Humidity30% — 80%
Non-condensing environment required.
Heat Dissipation< 200 BTU/hr

What's In The Box

Ready to serve.

Unit

QC PASSED

Unitx1

TSM-M3

TSM-M3-MAIN

Main unit.

Partx1

Hopper

PRT-HOP

10kg hopper.

Partx1

Tray

PRT-TRY

Drip tray.

Powerx1

Cable

PWR-CBL

Power cord.

Toolx1

Brush

TL-BRS

Cleaning brush.

Docx1

Manual

DOC-USR

User guide.
