Specifications

Technical Specifications

Every detail engineered for performance. The complete breakdown of the TSM-R1-S.

Dimensions & Views

Explore the TSM-R1-S from every angle. Compact, ergonomic, and designed for seamless integration.

SPEC-SHEET REV 2.4

ISO 9001 CERTIFIED

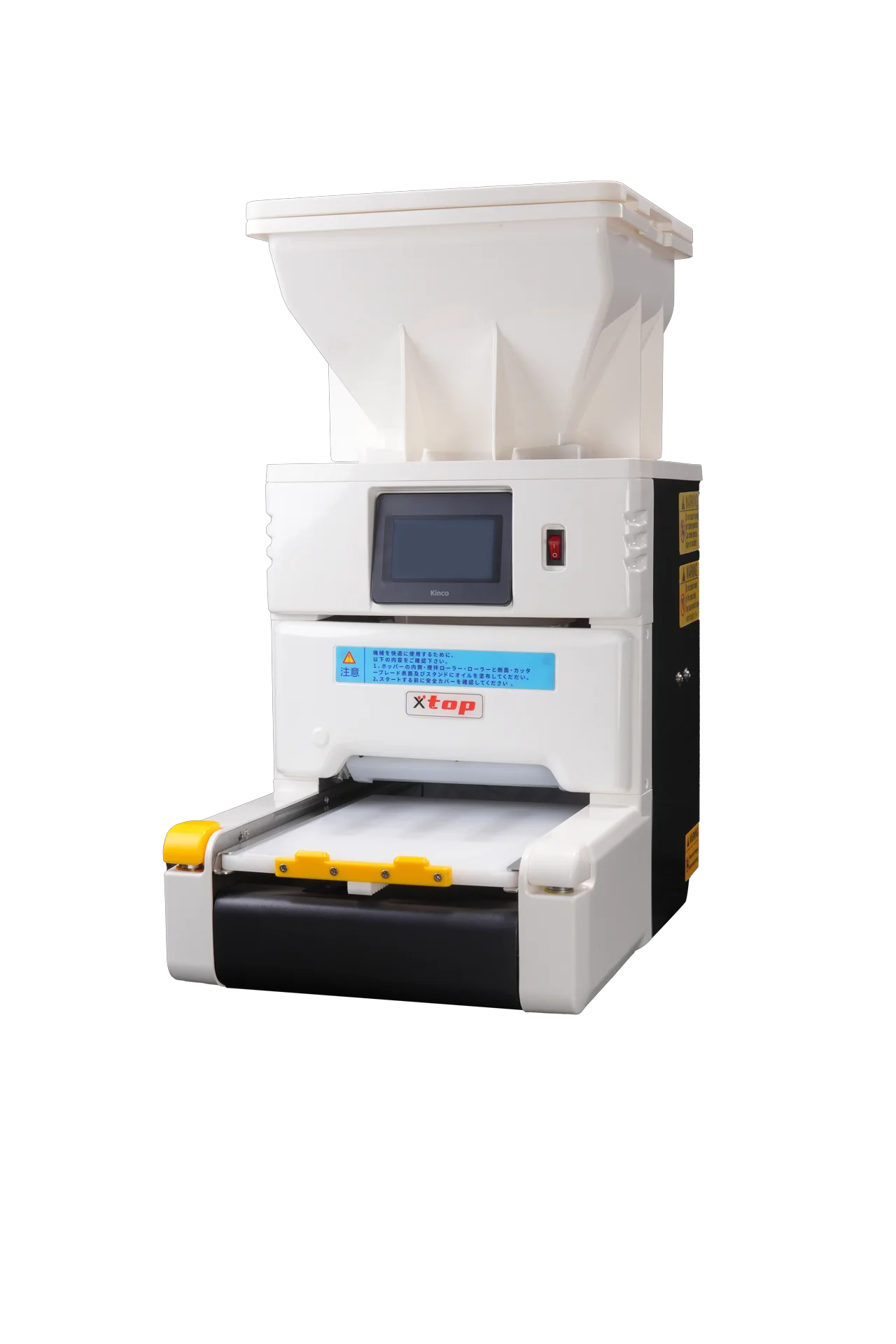

Front Elevation
Front Elevation

Physical Specifications

Unit Height
650 mm25.6 in
Unit Width
360 mm14.2 in
Unit Depth
540 mm21.3 in
Net Weight
40.0 kg88.2 lbs
Hopper Capacity
7.5 kg16.5 lbs

Logistics & Installation

Shipping Weight
50.0 kg110.2 lbs
Box Dimensions
730 x 530 x 780 mm~29 x 21 x 31 in
Cable Length
1.5m / 1.8m5ft / 6ft (Region)
Footprint Area
0.30 m²3.23 sq ft
Clearance (Sides)
150 mm6.0 in

Construction & Compliance

Chassis Material
SUS304 Stainless Steel
Food Contact
Fluorine Resin (BPA Free)
IP Rating
IPX3 (Washdown Safe)

Performance Metrics

Industrial-grade throughput meets artisanal precision. The TSM-R1-S delivers consistent output at speeds that redefine commercial kitchen efficiency.

High-Volume Series

TESTED @ 25°C AMBIENT

Max Throughput

800sheets / hr

CYCLE TIME: 4.5s / SHEET

Hopper Capacity

7.5kg (cooked)

YIELD: ~350 SHEETS / LOAD

Uniformity

100%

SENSOR CONTROLLED

Sheet Parameters

Sheet SizesFully Programmable
6 Presets
ThicknessPrecise Density Control
Adjustable
Rice TemperatureOptimal Forming Range
35°C - 50°C
Rice CompatibilityJaponica & Calrose
Short / Medium

Operational Data

Continuous RuntimeDesigned for 24/7 duty cycle
Unlimited
Cleaning CycleTool-less disassembly
15 Minutes
Noise LevelWhisper-quiet operation
< 60 dB
Maintenance IntervalGreasing & calibration
3 Months

Controls & Interface

A seamless Human-Machine Interface (HMI) designed for the chaotic reality of commercial kitchens. Operable with wet hands, gloves, and minimal training.

HMI System v4.0

IP54 RATED PANEL

Digital Interface

Display Size
7-Inch Color LCD
Touch Tech
Resistive
Works with wet hands/gloves
OS Languages
6 Built-in
EN, JP, CN, KR, ES, FR
Boot Time
< 5 Seconds

Hardware & Safety

Emergency Stop

Physical mushroom-head button cuts all motor power instantly.

Safety Interlocks

Magnetic sensors on hopper lid and front cover prevent operation when open.

Status Beacon

Tri-color LED (Green/Amber/Red) indicates machine state from across the kitchen.

Materials & Build Quality

Engineered for longevity. Constructed from premium alloys and advanced polymers designed to withstand the harsh thermal and chemical environment of commercial kitchens.

Industrial Grade

NSF/ANSI 8 COMPLIANT

SUS304 Stainless Steel

Main Chassis & Frame

1.5mm THICK

Fluorine Polymer

Hopper & Rollers (Non-Stick)

BPA FREE

Ag+ Antimicrobial Resin

Covers & Trays

ISO 22196

Structural Specification

Chassis MaterialSUS304 (18/8) Stainless Steel
Frame Thickness1.5mm - 2.0mm Reinforced
Surface Finish#4 Brushed Satin (Easy Clean)
Corrosion ResistanceSalt Spray Tested > 500 Hrs

Food Contact Zones

Roller CoatingAdvanced Fluorine Polymer
Heat ResistanceUp to 120°C (248°F)
Chemical ResistanceEthanol / Chlorine Compatible
Hygiene StandardNSF / HACCP / FDA Approved

Power & Environment

Global compatibility built-in. The TSM-R1-S features an auto-switching power supply and robust thermal management for stable operation in any kitchen climate.

AC 100-240V

50/60HZ UNIVERSAL

Electrical Input

Input Voltage
100-240V AC
● Auto-Switching
Frequency
50 / 60Hz
Max Power
90W
10W Idle Mode
Fuse Rating
5.0A
250V Slow-Blow
Supported Plug Standards
TYPE B (US)
TYPE F (EU)
TYPE G (UK)

Operating Environment

Ambient Temperature5°C — 35°C
0°C50°C
Relative Humidity30% — 80%
Non-condensing environment required.
Heat Dissipation< 300 BTU/hr

What's In The Box

A complete operational kit. Everything you need to start production immediately, organized and secure.

Kit Content

QC PASSED: 2024-Q1

Main Hardwarex1

TSM-R1-S Unit

PN-TSM-R1-S-001

Pre-assembled main body.

Main Hardwarex1

Hopper Lid

PN-CVR-002

Safety interlocked top cover.

Main Hardwarex1

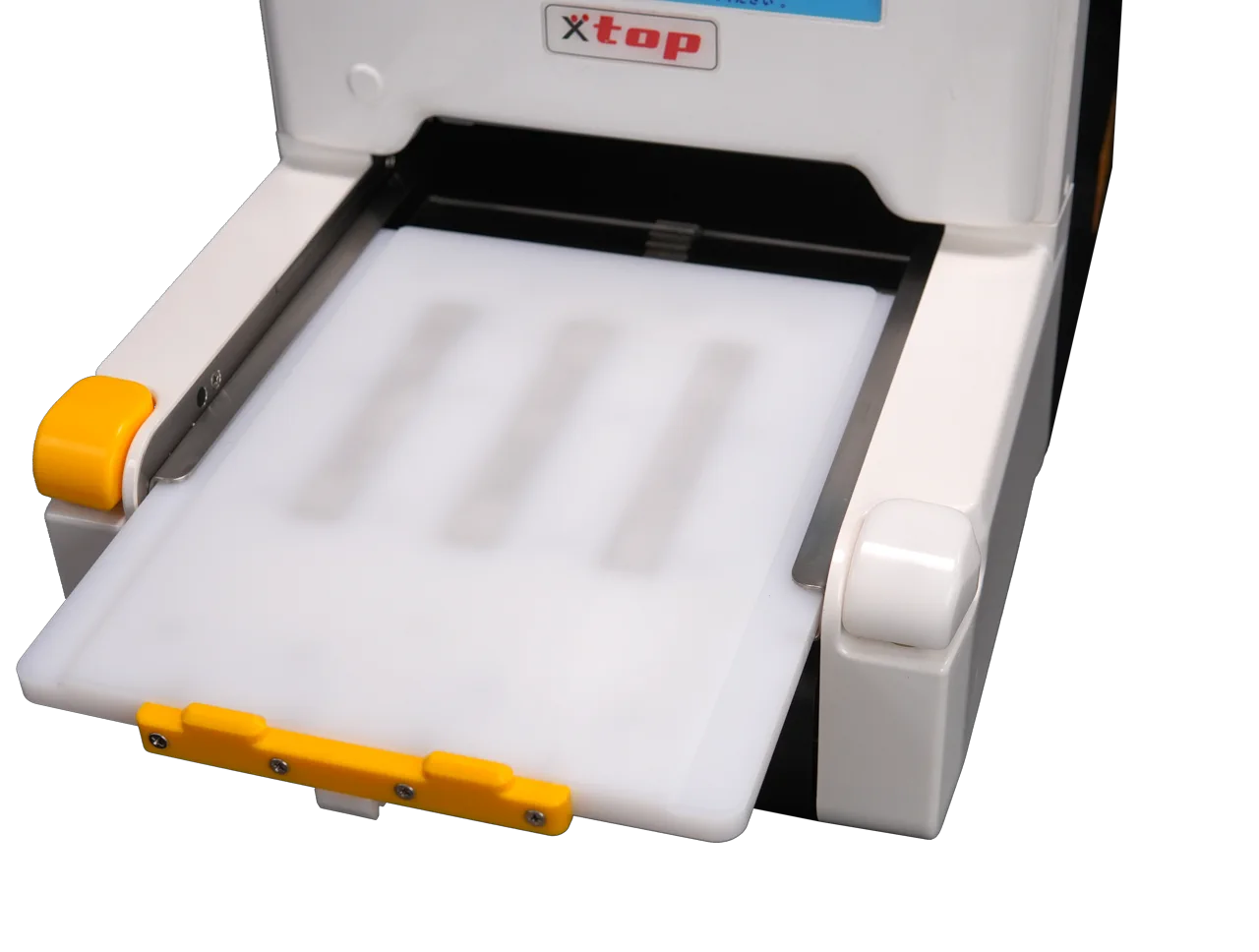

Rice Tray

PN-TRY-003

1.5kg capacity output tray.

Powerx1

Power Cord (2m)

PN-PWR-US-01

NEMA 5-15P grounded cable.

Maintenancex1

Cleaning Brush

PN-KIT-BRS

Nylon bristle detail brush.

Maintenancex1

Food-Grade Oil

PN-OIL-30ML

NSF H1 lubricant spray.

Maintenancex2

Spare Fuse

PN-FUS-5A

5A 250V glass cartridge.

Documentationx1

User Manual

DOC-USR-EN

EN/ES/FR operation guide.
