AUTHENTIC DETAILS

True Form Revealed.

Experience the world's lightest nigiri robot. Compact, efficient, and built for performance.

Highlights

Get the highlights.

Advanced features designed for the modern sushi kitchen.

Specifications

Technical Specifications

The world's smallest sushi robot. Portable, efficient, and precise.

Dimensions & Weight

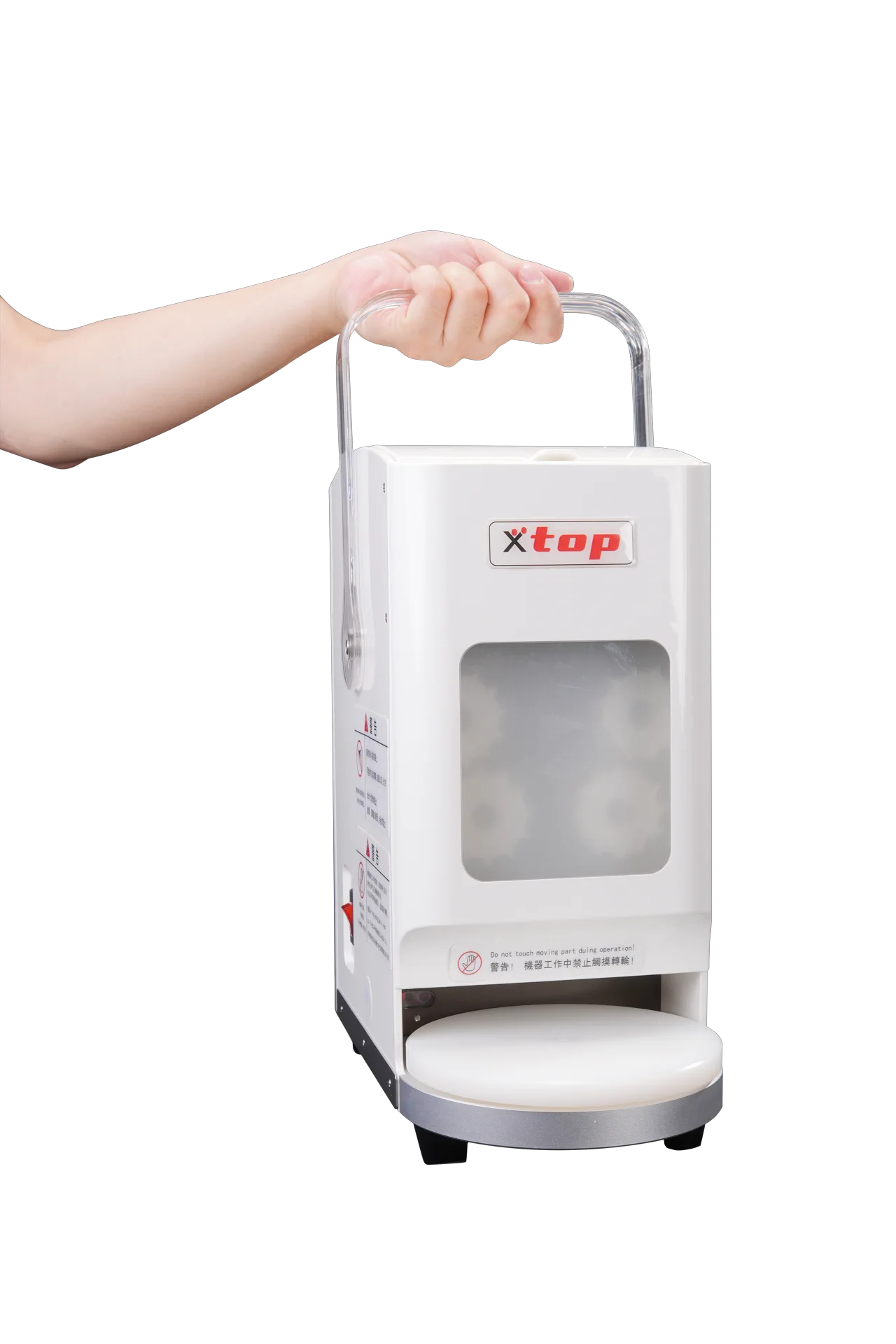

Ultra-compact design. Easily portable for catering and small counters.

SPEC-SHEET REV 1.5

STANDARD MODEL

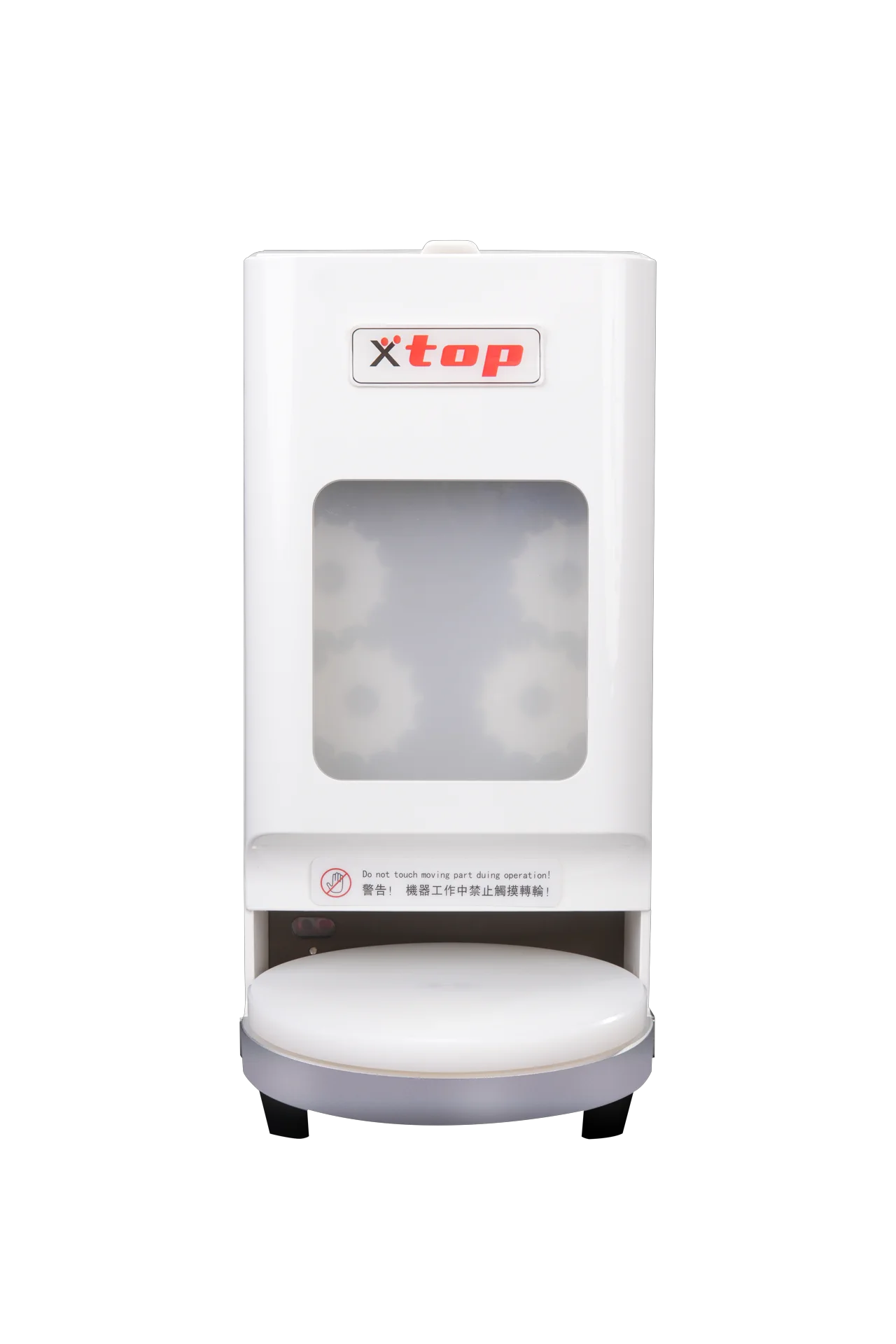

Front View
Front View

Physical Specifications

Unit Height
380 mm15.0 in
Unit Width
170 mm6.7 in
Unit Depth
330 mm13.0 in
Net Weight
11.0 kg24.3 lbs
Hopper Capacity
1.0 kg2.2 lbs

Logistics & Installation

Shipping Weight
13.0 kg28.7 lbs
Box Dimensions
410 x 260 x 460 mm~16 x 10 x 18 in
Cable Length
1.5m / 1.8m5ft / 6ft (Region)
Footprint Area
0.05 m²0.54 sq ft
Clearance (Top)
200 mm8 in

Construction & Compliance

Chassis Material
Composite Resin
Food Contact
Fluorine Polymer (BPA Free)
IP Rating
IPX3

Performance Metrics

Small size, big output. Ideal for convenience stores and small sushi bars.

Portable

TESTED @ 25°C AMBIENT

Throughput

1200balls / hr

HIGH SPEED

Weight

11kg

ULTRA LIGHT

Power

15W

LOW ENERGY

Sheet Parameters

Ball WeightStandard Sizes
18g - 24g
Rice TypeStandard Grain
Sushi Rice
Auto StopSensor Controlled
Yes
ConsistencyShape & Weight
Uniform

Operational Data

CapacitySteady Output
1200/hr
CleaningMinimal Parts
5 Minutes
NoiseSilent
< 55 dB
MaintenanceNo Grease Needed
Minimal

Controls & Interface

Minimalist control for maximum ease. Plug and play operation.

Simple

AUTO STOP

Digital Interface

Switch
On / Off
Main Control
Mode
Auto Stop
Sensor Based
Weight
Manual Adj
Dial Control
Status
LED
Power Indicator

Hardware & Safety

Auto Stop

Stops when turntable is full.

Cover Sensor

Safety cutoff.

Low Voltage

Safe 24V internal operation.

Materials & Build Quality

Lightweight yet durable composite construction. Easy to carry and clean.

Lightweight

CE CERTIFIED

Composite Body

Main Housing

Lightweight

Non-Stick Parts

Rice Contact

Easy Clean

Clear Cover

Hopper Lid

Visibility

Structural Specification

BodyHigh Strength Resin
GearsPolymer
TurntableFood Grade Plastic
DesignPortable

Food Contact Zones

SurfaceNon-Stick
MaterialFood Safe
CleaningWashable
ComplianceHygiene Std

Power & Environment

Ultra-low power consumption. Can run on battery packs (optional).

100-240V

15W ECO

Electrical Input

Input Voltage
100-240V AC
● Auto-Switching
Frequency
50 / 60Hz
Max Power
15W
10W Idle Mode
Fuse Rating
1.0A
250V Slow-Blow
Supported Plug Standards
TYPE B (US)
TYPE F (EU)
TYPE G (UK)

Operating Environment

Ambient Temperature5°C — 35°C
0°C50°C
Relative Humidity30% — 80%
Non-condensing environment required.
Heat Dissipation< 50 BTU/hr

What's In The Box

Everything needed for portable sushi making.

Portable Kit

LIGHTWEIGHT

Unitx1

TSM-N2

TSM-N2-MAIN

Main unit.

Partx1

Hopper

PRT-HOP-S

1kg hopper.

Partx1

Turntable

PRT-TRN-S

Small turntable.

Powerx1

Adapter

PWR-ADP

AC Adapter.

Toolx1

Brush

TL-BRS

Cleaning brush.

Docx1

Manual

DOC-USR

User guide.
