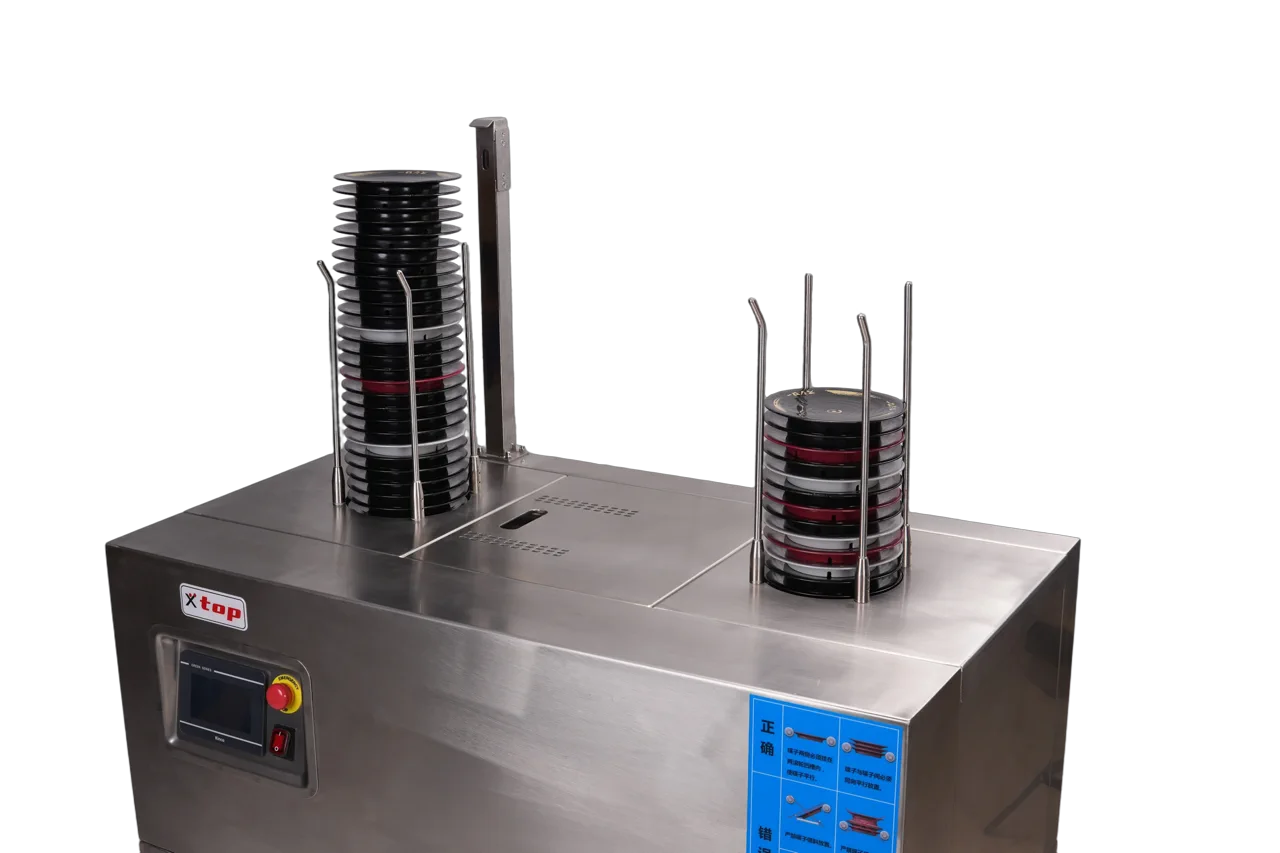

AUTHENTIC DETAILS

True Form Revealed.

High-throughput cleaning efficiency, visualized. See the TSM-D1's robust build and intelligent design in action.

Features

Redefining Clean.

Five pillars of innovation that separate the TSM-D1 from every other dishwasher on the market.

Specifications

Technical Specifications

High-volume dishwashing for the busiest kitchens. Intelligent, powerful, and efficient.

Dimensions & Weight

Industrial scale machine built for high throughput. Requires standard commercial installation.

SPEC-SHEET REV 2.2

STANDARD MODEL

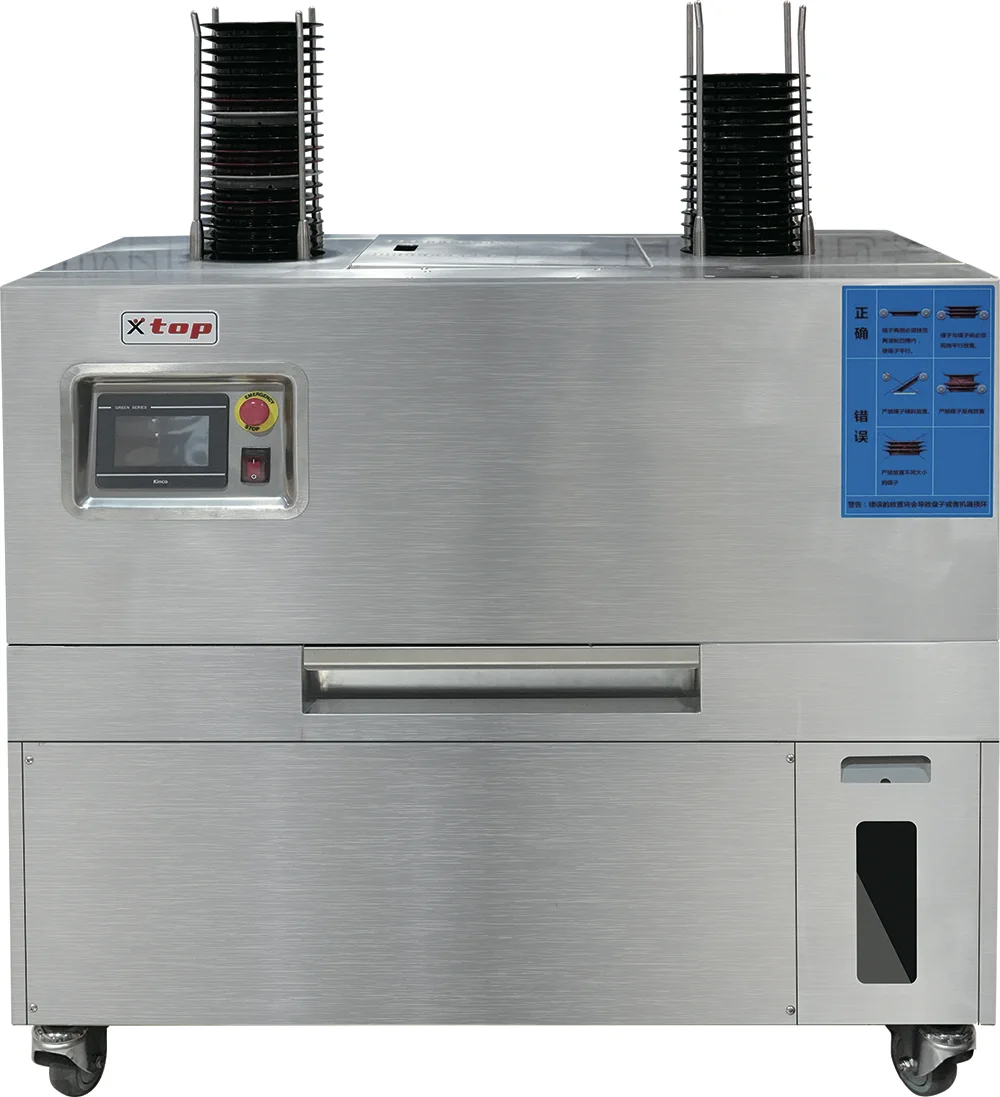

Front View
Front View

Physical Specifications

Unit Height
1300 mm51.2 in
Unit Width
995 mm39.2 in
Unit Depth
555 mm21.9 in
Net Weight
190.0 kg419 lbs
Water Usage
100 L/hr26.4 gal/hr

Logistics & Installation

Shipping Weight
220.0 kg485 lbs
Box Dimensions
1100 x 650 x 1450 mm~43 x 26 x 57 in
Installation
Direct Plumb3/4" Inlet
Drainage
Floor Drain50mm Pipe
Clearance (Front)
800 mm31.5 in

Construction & Compliance

Chassis Material
SUS304 Stainless Steel
Water Proof
IPX5
Hygiene
HACCP Ready

Performance Metrics

Cleaning power that matches the speed of modern food service.

Industrial Grade

TESTED @ FULL LOAD

Throughput

1900plates / hr

MAXIMUM CAPACITY

Water Eff

100L / hr

ECO MODE

Hygiene

100%

SANITIZED

Sheet Parameters

Wash CycleSensor Driven
Automatic
Temp RangeWash / Rinse
60°C - 85°C
PressureMulti-Jet System
High Pressure
DryingRapid Dry
Air Knife

Operational Data

CapacityContinuous
1800-1900/hr
Self CleanEnd of Shift
Auto Program
FilterEasy Access
Removable
DetergentPump System
Auto Dosing

Controls & Interface

Smartphone-like touch interface. Intuitive control over complex washing cycles.

Smart Touch

IP67 PANEL

Digital Interface

Display
LCD Touch
Waterproof
OS
Smart System
User Friendly
Programs
Multiple
Eco / Heavy / Rapid
Diagnostics
On-Screen
Self Check

Hardware & Safety

Door Sensor

Auto stop when door is opened.

Leak Detect

Sensors in base tray.

Temp Lock

Ensures sanitation temp is reached.

Materials & Build Quality

Heavy gauge stainless steel construction. Built to withstand the humid and harsh environment of a washroom.

Heavy Duty

304 STAINLESS

SUS304 Stainless

Main Body

Corrosion Resistant

Reinforced Seals

Door Gaskets

Long Life

Industrial Pump

Core Engine

High Torque

Structural Specification

FrameWelded 304 SS
PipingStainless Steel
InsulationDouble Wall
LegsAdjustable SS

Food Contact Zones

Wash TankSeamless SS
RacksStandard Size
Spray ArmsStainless Steel
Sanitation85°C Rinse

Power & Environment

High power requirement for heating and pumping. 3-Phase power recommended.

380V 3-PHASE

1200W

Electrical Input

Input Voltage
380V AC
● Auto-Switching
Frequency
50 / 60Hz
Max Power
1200W
10W Idle Mode
Fuse Rating
16.0A
250V Slow-Blow
Supported Plug Standards
TYPE B (US)
TYPE F (EU)
TYPE G (UK)

Operating Environment

Ambient Temperature10°C — 40°C
0°C50°C
Relative HumidityHigh
Non-condensing environment required.
Heat Dissipation< 2000 BTU/hr

Installation Kit

Large equipment delivery includes basic setup components.

Palletized

PRO INSTALL REQ

Machinex1

TSM-D1 Washer

TSM-D1-MAIN

Main unit.

Plumbingx1

Inlet Hose

PLM-IN

High pressure hose.

Plumbingx1

Drain Hose

PLM-OUT

Flex drain pipe.

Racksx2

Plate Rack

RCK-PLT

Standard rack.

Racksx1

Flat Rack

RCK-FLT

Utensil rack.

Docsx1

Manual

DOC-INS

Install guide.
